No. 1 1/2 Hippo Hammer Mill

No.1 1/2 Hippo Hammer Mill - Available as Plain and Blower option.

This Model is available in Plain and Blower option. Plain - The milled product passes through the mill and straight into the bag. Blower - The milled product passes through the mill and is moved via a blower into a cyclone where it is then bagged off from a two way bagging attachment. The blower is more necessary when been used in a milling station. These mills as with the Baby mill are popular in the Spices Industry as well as as in grain milling and in smaller feed mills.

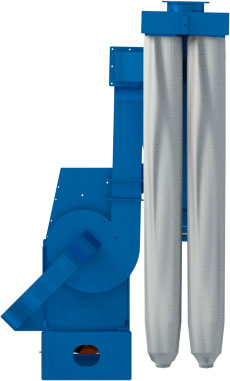

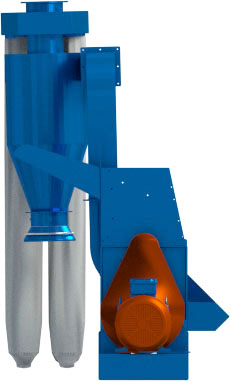

Hippo hammer mill numnber one and a half front. Rendered image of a Hippo hammer mill numnber one and a half right. Design of a Hippo hammer mill numnber one and a half left.
Data on No. 1 1/2 Hippo Hammer Mill
MASS 202
BEATER 8
TIP 16
ROTOR RPM 4200-4600
FEED TRAY LENGHT 770
FEED TRAY WIDTH 490
SCREEN AREA CM2 1380
CAPACITY KG/H 600
KW NEEDED 11
Suggested speeds are as follows for best results on the milled product, as well as for the air transport system to work optimally

Hippo hammer mill fan curve

A graph representing the fan curve of the Hippo hammer mill 1.5.

A curve on a graph for the performance of the Hippo series fan. This data was obtained experimentally on Jan 2018.
